FigMirror: Plot Your Data in Any Paper's Style.
Pick a reference figure, paste your data, and get an editable matplotlib script plus a camera-ready PDF.

Paper & Results | Showcase | Milestones | Quick Start | How It Works | Star History | Method | Contribute

English | 中文

🔥 Milestones

• Jun 1, 2026 — FigMirror release: shipped FigMirror as Claude Code and Codex skills, with a local Web UI for upload, iteration browsing, and refinement.
• Jun 17, 2026 — Algorithm update: refined the Codex path with role-separated Drawer / Reviewer agents, far-near visual review views, reviewer bounding boxes, and annotated feedback passed into the next iteration.
• Jul 1, 2026 — Evaluation update: built an internal hybrid style scorer for repeatable method comparison.
• Aug 17, 2026 — Claude Code parity: ported the production role-separated loop to Claude Code with the same decision state machine and bounded iteration contract.
• Aug 28, 2026 — arXiv preprint: released FigMirror: Ground It, Code It, Plot It, introducing PlotTwin-Bench and the paper's benchmark results.

📝 Paper & Results

Our arXiv preprint, FigMirror: Ground It, Code It, Plot It (August 28, 2026), introduces PlotTwin-Bench for reference-conditioned scientific-figure style transfer.

The paper reports a 150-instance evaluation subset: all 50 hand-curated references and 100 randomly sampled augmented references. FigMirror achieves the highest combined score on both splits: 72.7 on hand-curated references and 76.4 on augmented references. The splits are reported separately, and all methods in this comparison use GPT-5.5.

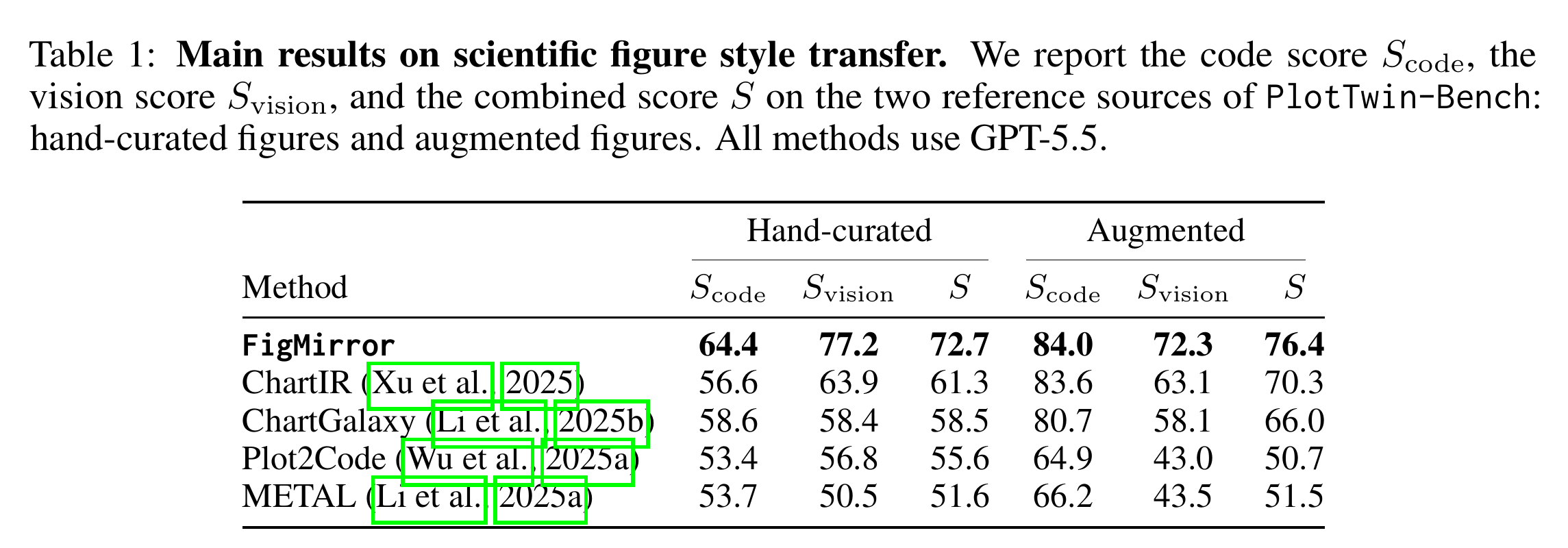

_{Main results. PlotTwin-Bench comparison by code, vision, and combined scores. FigMirror achieves the highest combined score on both the hand-curated and augmented reference splits.}

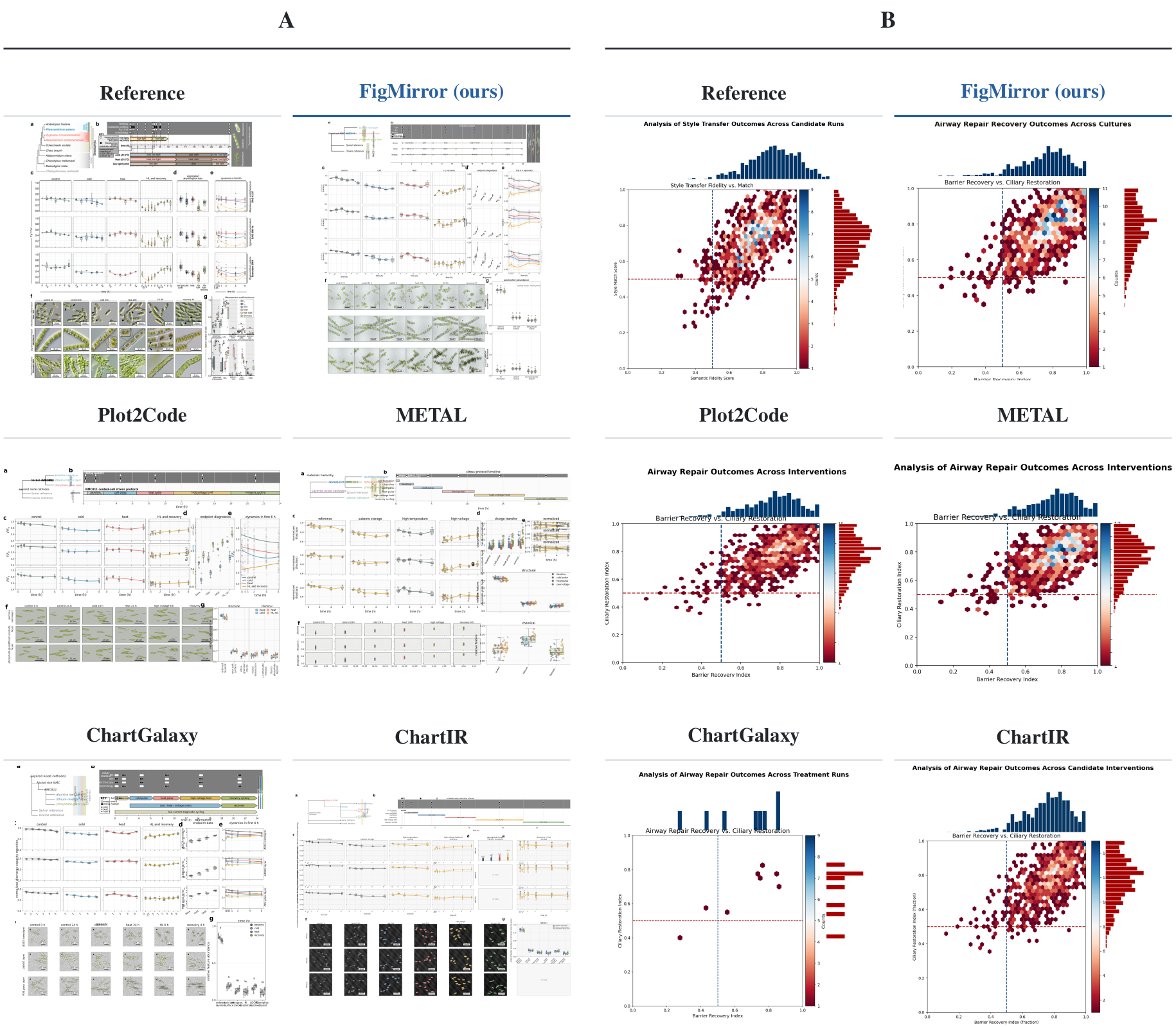

_{Qualitative comparison. Each group shows the reference, FigMirror, and four baselines on the same target data. Group A tests a dense multi-panel composition; Group B tests a joint hexbin plot with marginal histograms.}

Showcase

FigMirror uses a reference figure as the style target, then renders your data through an iterative Drawer / Reviewer loop until the output looks like it belongs in the same paper family.

Reference	FigMirror Output

Reference	FigMirror Output	Reference	FigMirror Output

_{No high-quality reference at hand? Start from 139 paper figures across 25 chart families.}

Quick Start

Install With Your Claude / Codex

Already inside Claude Code or Codex? Paste this and let the agent do the setup:

Install FigMirror for me: https://github.com/VILA-Lab/FigMirror

Web UI

Use this when you want upload, preview, iteration history, and refinement in a browser.

If uv is missing: python3 -m pip install uv.

git clone https://github.com/VILA-Lab/FigMirror.git && cd FigMirror
bash scripts/install.sh
uv run python scripts/figcopy_serve.py --workspace .artifacts/figmirror-workspace --backend codex

Use --backend claude to run the same Web UI through Claude Code.

Open http://127.0.0.1:8765/.

The installer auto-detects Claude Code and Codex. For either harness, it installs the figmirror skill plus the figmirror-drawer and figmirror-reviewer custom agents used by the current role-separated algorithm.

Skill Only

Use this when you want FigMirror inside your agent, no web UI. The bundled Python helpers use uv; install it first with python3 -m pip install uv if it is not already available. On shared or small-root machines, run df -h and export UV_CACHE_DIR to a user-owned directory on the largest non-root writable filesystem before the first invocation.

curl -fsSL https://raw.githubusercontent.com/VILA-Lab/FigMirror/main/scripts/install.sh | bash

Target one runtime explicitly:

curl -fsSL https://raw.githubusercontent.com/VILA-Lab/FigMirror/main/scripts/install.sh | bash -s -- --codex
curl -fsSL https://raw.githubusercontent.com/VILA-Lab/FigMirror/main/scripts/install.sh | bash -s -- --claude
curl -fsSL https://raw.githubusercontent.com/VILA-Lab/FigMirror/main/scripts/install.sh | bash -s -- --all

Then attach a paper-figure screenshot, paste your data, and ask:

Use FigMirror to mirror this figure's style with my data.

Need manual target selection, Claude backend, or troubleshooting? See Detailed Install.

How It Works

Illustration of FigMirror. The left panel shows the core agentic loop; the right panel introduces Grounded Measurement.

FigMirror uses an agentic Drawer-Reviewer loop. In both Codex and Claude Code, a top-level Orchestrator delegates drawing to the named figmirror-drawer agent and visual audit to the named figmirror-reviewer agent. The Reviewer sees a far-view composite plus full-resolution source and candidate views, returns structured feedback with bounding boxes, and the Orchestrator turns that feedback into an annotated image and notes for the next Drawer pass. The two harnesses share the same decision state machine and hard iteration cap; only their subagent transport differs.

The Drawer renders a candidate figure with Grounded Measurement. The Reviewer compares it with the reference image, then returns a visual review, a revision checklist, and a preserve list. The preserve list accumulates across iterations as an anchor against style drift. The Aesthetic Lib provides fallback principles, style rules, and figure properties when the agents disagree or the Drawer has low confidence.

For 3D figures, FigMirror adds geometry-aware prompting for camera, scale, surfaces, lighting, and repair checks, helping the loop preserve the 3D composition of the reference figure while producing editable matplotlib code.

Grounded Measurement builds on two properties of computer-use-trained foundation models: Measurement with Axis, which lets the model return x/y coordinates for visual targets; and Resonate with Code, which turns those coordinates into executable checks, such as cropping a line segment and reading its color from pixels.

For the detailed algorithm, architecture, product envelope, and spec map, read docs/method.md. For the web UI, see scripts/README_figcopy_serve.md.

Contributing

FigMirror welcomes contributions!

Open an issue for bugs, broken installs, or figure cases FigMirror should learn from; open a PR for showcase examples, prompt improvements, UI polish, or small regression tests.

• Showcase cases: add reference/output pairs that prove the method across chart families.
• UI polish: make the web workflow feel instant, legible, and forgiving.
• Prompt and reviewer quality: improve the Drawer / Reviewer loop without weakening the grounding rules.
• Evaluation: add reproducible cases that catch visual drift, floor violations, and broken exports.

Start with docs/contributing.md. Good first PRs include adding a showcase example, improving a web UI interaction, tightening install docs, or adding a small regression test around runner behavior.

Star History

_{Rendered by Star History from GitHub stargazer data, so the chart stays current as the repository grows.}

Roadmap

• Ship the reference-to-figure loop as Codex and Claude Code skills.
• Add a local Web UI for upload, iteration browsing, and refinement.
• Publish a 139-figure gallery so users can start without hunting for references.
• Refine the Codex algorithm with role-separated Drawer / Reviewer agents and bbox-annotated visual feedback.
• Build an internal hybrid style scorer for repeatable method comparison.
• Release the scorer protocol, benchmark design, baselines, and analysis in an arXiv paper.
• Release reproducible PlotTwin-Bench artifacts with references, target data, generated outputs, and evaluation metadata.
• Harden install and runtime docs for more OpenAI-compatible and local-agent backends.
